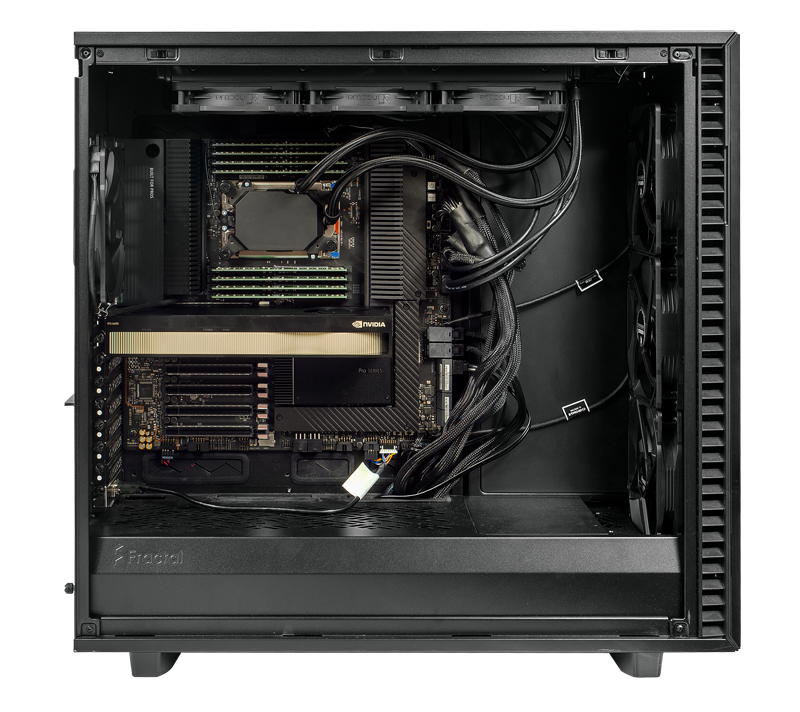

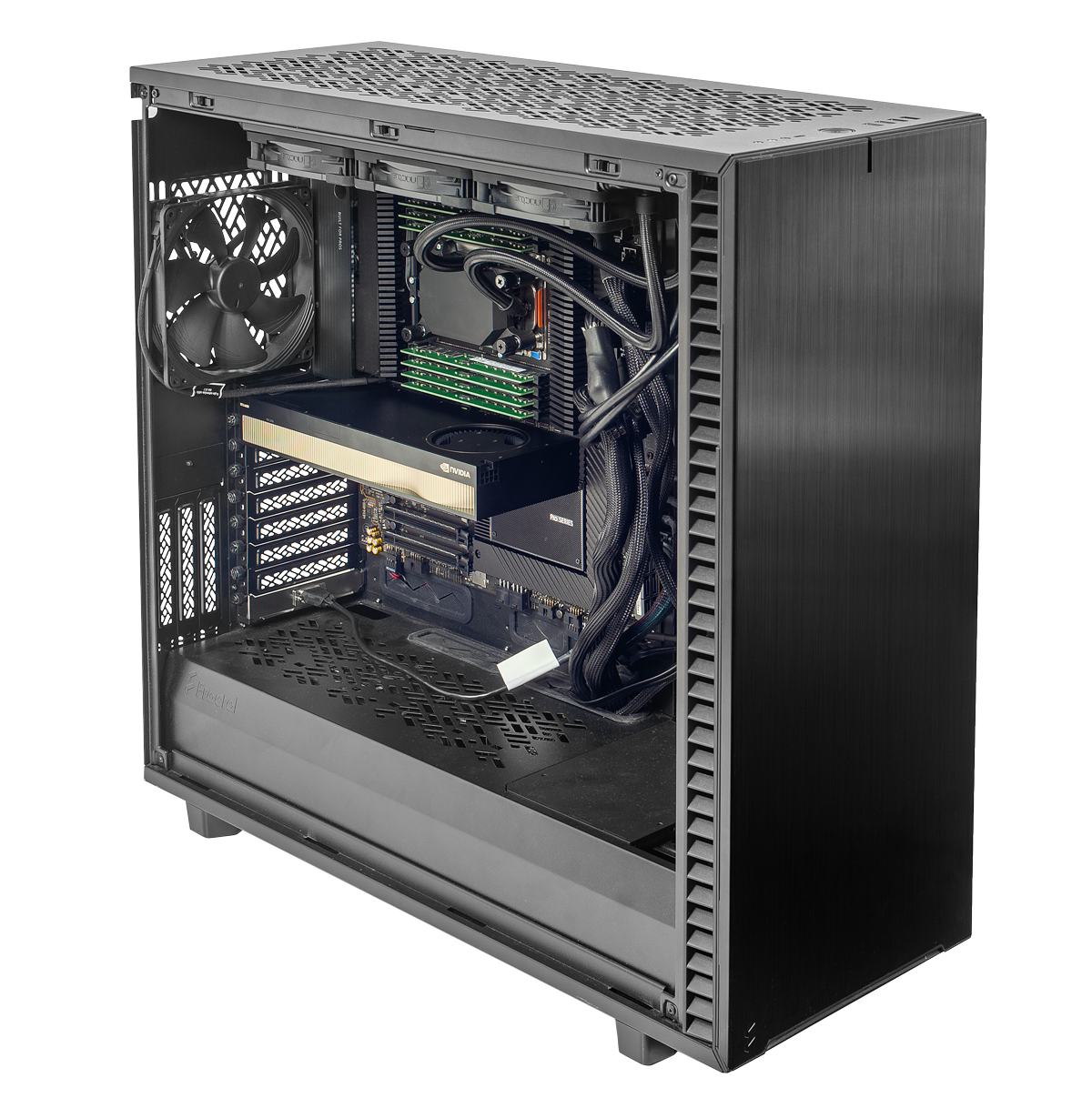

FORMAT WIDAR Custom Workstation

The way people work is undergoing a drastic change with distributed teams and remote workers as the new normal. Artists are facing an ever-increasing demand for differentiated and visually compelling content.

Designers and engineers are striving to create more complex and efficient designs in highly supply-constrained environments. Scientists, researchers, and medical professionals are faced with incredible challenges that require the rapid development of solutions on a global scale.

Intel® 12th Generation Core™ i3/i5/i7/i9 Processors and DDR5-4800 ECC memory for professional performance and stability
Ready for 2D/3D rendering with support for one NVIDIA® Quadro RTX™
Dual onboard 2.5GbE ethernet ports for faster high-density, high-bandwidth and low-latency
Supports Intel WiFi 6 module
Triple M.2 for up to 32Gbps for better performance and data redundancy
A EPEAT Bronze-certified workstation for greener environment
Ultra-fast connectivity with USB 3.2 Gen 2.2 Type-C, USB 3.2 Gen 2 Type A and C and USB 3.2 Gen 1
Supports up to three independent displays simultaneously via HDMI, DisplayPort, DVI-D and VGA
Independent software vendor (ISV) certification for validated reliability and compatibility with key applications

Operating System

Windows 11 Pro – ASUS recommends Windows 11 Pro for business.
Windows 11 Home – ASUS recommends Windows 11 Pro for business.
Processor / System Bus

1 x Socket LGA1700
Intel®12th generation Intel® Core™ i9/i7/i5/i3 processors
Core Logic

Intel® W680 Chipset
Memory

Total Slots :

4 (2-channel)

Capacity :

Maximum up to 128GB UDIMM

Memory Type :

Dual Channel DDR5 4400/3600 MHz, ECC/non-ECC UDIMM

Memory Size :

32GB, 16GB, 8GB UDIMM

* Refer to support page for more information

* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Expansion Slots

Total: 5
Location-1: PCIe x16 slots (Gen5 x16/x8 link, FH, FL)
Location-2: PCIe x1 slots (Gen3 x1 link, FH, FL)
Location-3: PCIe x16 slots (Gen5 x0/x8 link, FH, FL)
Location-5: PCIe x16 slots (Gen4 x4 link, FH, FL)*1
Location-6: PCIe x16 slots (Gen3 x4 link, FH, FL)
*1 the bandwidth of PCIe link is shared with M.2_2
Storage

Storage Controller :

Intel® W680 Chipset

8 x SATA3 6Gb/s ports

Intel® Rapid Storage Technology(RST) (For Windows Only)

(Support Software RAID 0, 1, 5, 10 )

1 x M.2_1 socket3, up to 2280 type (PCIe Gen4 x4 link), from CPU

1 x M.2_2 socket3, up to 2280 type (PCIe Gen3 x4 link), from PCH

1 x M.2_3 socket3, up to 22110 type (PCIe Gen4 x4 link), from PCH
Drive Bays

3 x internal 3.5” Drive bays
1 x Internal 2.5″ Drive bay
Auxiliary Storage FDD/CD/DVD

2 x 5.25″ media bays

(Options: No ODD/DVD-RW)
Networking

2 x Intel® I225-LM 2.5GbE LAN
Graphic

Up to 1 GPU Card
Multi-GPU Support

Please find the latest GPU support from https://servers.asus.com/support/gpu
Front I/O Ports

1 x USB 3.2 Gen2x2 port
2 x USB 3.2 Gen1 ports
1 x USB 2.0 port
1 x Headphone port
1 x Microphone port
Rear I/O Ports

2 x USB 3.2 Gen2 ports (1 port at Type A, 1 port at Type C)
4 x USB 3.2 Gen1 ports
1 x HDMI
1 x DisplayPort
1 x DVI-D
1 x VGA
2 x LAN ports (RJ45)
1 x 7.1-channel Audio I/O ports (5+1 Audio jacks)
Switch/LED

Front:
1 x Power Switch/LED
1 x Reset Switch
1 x HDD Access LED
OS Support

Please find the latest OS support from https://servers.asus.com/support/os
Management Solution

ASUS Control Center support
Regulatory Compliance

BSMI, CE, FCC, Energy Star
Dimensions

423mm x 190mm x 435mm
16.7″ x 7.48″ x 17.1″
Weight

Net Weight : 9.9 KG
Gross Weight : 12.1 KG
Power Supply

300W Bronze ATX Power Supply (100-127/220-240Vac, 6-3A, 50-60Hz, Class I)
550W Gold ATX Power Supply (100-240Vac, 9-4.5A, 50-60Hz,)
750W Gold ATX Power Supply (100-240Vac, 9-4.5A, 50/60Hz)
Environment

Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Optional Items

Smart Card Reader
Anti-Virus CD pack
OS
DVD-ROM
Keyboard and mouse
Print port cable
