Informacje o firmie

QCT (Quanta CLOUD TECHNOLOGY) jest globalnym dostawcą rozwiązań dla segmentu DATACENTER (centrów danych).

Linie produktów obejmują serwery, pamięć masową, przełączniki sieciowe, zintegrowane systemy RACL i rozwiązania w chmurze. Produkty charakteryzują się wysoką wydajnością, skalowalnością, niezawodnością, łatwością zarządzania, serwisowania i zoptymalizowaną wydajnością dla każdego obciążenia.

QCT oferuje pełną gamę produktów i usług od centrów danych, integracji i inżynierii do globalnej optymalizacji łańcucha dostaw wsparcia.

Quanta Computer Inc., znajduje się w ścisłym gronie 500 Fortune Global firm technologicznych i inżynieryjnych. http://www.QuantaQCT.com

Centrala / Lokalizacja

QCT z siedzibą w Taoyuan, Tajwan, posiada dwa biura w Stanach Zjednoczonych (San Jose w Kalifornii .; Seattle, Wash.); dwa w Chinach (Pekin i Hangzhou); i jedno w Tokio, Japonia.

QCT_server_portfolio

Serwery

Serwery 1U / 2U / 4U ogólnego przeznaczenia, serwery o wysokiej gęstości wielu węzłów oraz serwery krytyczne 4-way high-end do zastosowań biznesowych, takich jak HPC, wirtualizacja danych, analiz dużych obliczeń rozproszonych oraz różnych usług w chmurze.

1U

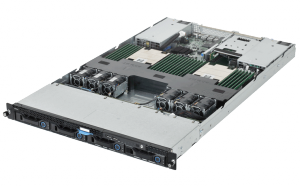

QuantaGrid D51B-1Uwiecej_button

Full-Featured Energy Efficient 2-Socket Server

Processor  (2) Intel® Xeon® processor E5-2600 v3 product family
 D51B-1U-35_FrontView01-740x460 Chipset  Intel® C610
Memory (24) 2133 MHz DDR4 RDIMM/ LRDIMM
Storage Option 1: (10) 2.5″ hot-plug (including (2) optional 2.5″ NVMe PCIe SSD)
Option 2: (10) 2.5″ hot-plug (require additional LSI SAS/ MegaRAID card to connect to the expander backplane)
Option 3: (4) 3.5″ hot-plug, (2) 2.5″ fixed SSD
Network Controller Option 1: Intel® I350 dual-port 1 GbE Dedicated 1 GbE management port
Option 2: Intel® X540 dual-port 10GbE BASE-T Dedicated 1 GbE management port
Expansion Slot Option 1 (default): (1) PCIe Gen3 x8 SAS mezzanine slot (1) PCIe Gen3 x16 FHHL
(1) PCIe Gen3 x8 OCP LAN mezzanine slot
Option 2: (1) PCIe Gen3 x16 LP MD-2
(1) PCIe Gen3 x16 FHHL
(1) PCIe Gen3 x8 OCP LAN mezzanine slot
 Intel_xeon Form Factor 1U rack mount

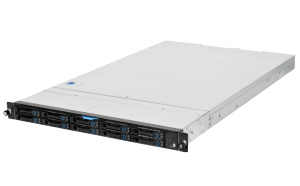

QuantaGrid D51BP-1Uwiecej_button

Energy Efficient 2-Socket Server with Extreme Storage IOP/S

Processor  (2) Intel® Xeon® processor E5-2600 v3 product family
 D51BP-1U_FrontView01-740x460 Chipset  Intel® C610
Memory (20) 2133 MHz DDR4 RDIMM/ LRDIMM
Storage (10) 2.5″ hot-plug (support PCIe-based interface)
Network Controller Option 1: Intel® I350 dual-port 1 GbE Dedicated 1 GbE management port
Option 2: Intel® X540 dual-port 10GbE BASE-T Dedicated 1 GbE management port
Expansion Slot Option 1 (default): (1) PCIe Gen3 x8 SAS mezzanine slot
(1) PCIe Gen3 x8 OCP LAN mezzanine slot
(2) PCIe Gen3 x8 LP MD-2
Option 2 (this sku does not support any 2.5″ PCIe SSD): (1) PCIe Gen3 x8 SAS mezzanine slot
(1) PCIe Gen3 x8 OCP LAN mezzanine slot
(2) PCIe Gen3 x16 LP MD-2
 Intel_xeon Form Factor 1U rack mount

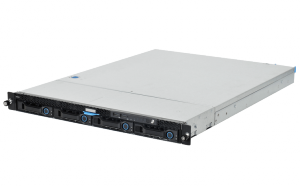

QuantaGrid D51PS-1Uwiecej_button

Powerful Compact 2-Socket Server

Processor  (2) Intel® Xeon® processor E5-2600 v3 product family
 D51PS-1U_FrontView01-740x460 Chipset  Intel® C610
Memory (16) 2133 MHz DDR4 RDIMM/ LRDIMM
Storage Option 1: (10) 2.5″ hot-plug
Option 2: (4) 3.5″ hot-plug
(2) 2.5″ fixed SSD
Network Controller Intel® I350 dual-port 1 GbE
Dedicated 1 GbE management port
Expansion Slot Option 1 (default): (1) PCIe Gen3 x8 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP LAN mezzanine slot
Option 2: (1) PCIe Gen3 x8 QCT LAN mezzanine slot
(1) PCIe Gen3 x16 OCP LAN mezzanine slot
 Intel_xeon Form Factor 1U rack mount

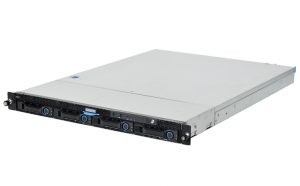

QuantaGrid D51PC-1Uwiecej_button

Versatile Compact 2-Socket Server

Processor  (2) Intel® Xeon® processor E5-2600 v3 product family
 D51PC-1U_FrontView01-740x460 Chipset  Intel® C610
Memory (8) 2133 MHz DDR4 RDIMM/ LRDIMM
Storage Option 1: (10) 2.5″ hot-plug
Option 2: (4) 3.5″ hot-plug
(2) 2.5″ fixed SSD
Network Controller Option 1: Intel® I210 single port 1 GbE
Dedicated 1 GbE management port
Option 2: Intel® I210 single port 1 GbE
+ Intel® I350 dual-port 1 GbE
Dedicated 1 GbE management port
Expansion Slot Option 1 (default): (1) PCIe Gen3 x8 SAS mezzanine slot
(1) PCIe Gen3 x8 Low profile MD-2
(1) PCIe Gen3 x8 OCP LAN mezzanine slot
Option 2: (1) PCIe Gen3 x8 QCT LAN mezzanine slot
(1) PCIe Gen3 x8 Low profile MD-2
(1) PCIe Gen3 x8 OCP LAN mezzanine slot
 Intel_xeon Form Factor 1U rack mount

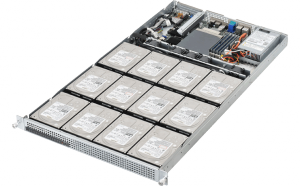

STRATOS S100-L11Dwiecej_button

The Densest 1U Scale Out Storage Server

Processor  (1) Intel® Xeon® processor E3-1200 v3 product family
 Server-STRATOS-S100-L11D_FrontView02-740x460 Chipset  Intel® C226
Memory (4) 1600/1333 MHz DDR3 ECC UDIMM
Storage (12) 3.5″ or 2.5″ fixed SATA
Network Controller (1) Intel® 82599ES single port 10G SFP+
(4) Intel® I210 1 GbE
Dedicated 10/100 management port
Expansion Slot (1) PCIe Gen3 x8 LP MD-2
 Intel_xeon Form Factor 1U rack mount

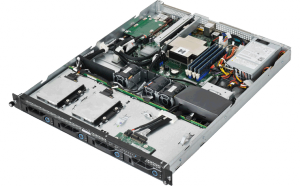

STRATOS S100-X1S1Nwiecej_button

Compact 1U Server with Extra Storage Expandability

Processor  (1) Intel® Xeon® processor E3-1200 v3 product family
 Server-STRATOS-S100-X1S1N-3.5_FrontView03-740x460 Chipset  Intel® C222
Memory (4) 1600/1333 MHz DDR3 ECC UDIMM
Storage Option 1: (10) 2.5″ hot-plug
(2) 2.5″ fixed SSD
Option 2: (4) 3.5″ hot-plug
(2) 2.5″ fixed SSD
(2) 2.5″ fixed HDD
Network Controller Intel® I210 dual port 1 GbE
Expansion Slot Option 1 (default): (2) PCIe Gen3 x8 mezzanine Slots (incl. (1) SAS and (1) OCP mezz)
Option 2: (1) PCIe Gen3 x8 LP-MD2
(1) PCIe Gen3 x8 OCP mezzanine Slots
 Intel_xeon Form Factor 1U rack mount

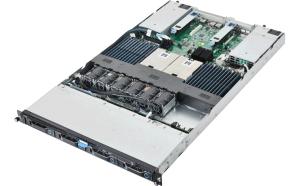

STRATOS S215-X1M2Zwiecej_button

OCP, AMD Open 3.0 Compliant 1U Server

Processor (2) AMD OpteronTM 6200, 6300 product family
 Server-STRATOS-S215-X1M2Z-3.5_FrontView02-740x460 Chipset AMD SR5670 + SP5100
Memory (24) 1600/1333 MHz DDR3 RDIMM
Storage Option 1: (10) 2.5″ hot-plug
Option 2: (4) 3.5″ hot-plug
Network Controller Broadcom 5720 dual-port 1 GbE
Expansion Slot (2) PCIe Gen2 x8 LP MD-2
(1) PCIe Gen3 x8 OCP mezzanine slot
amd-opteron-logo-100x Form Factor 1U rack mount

2U

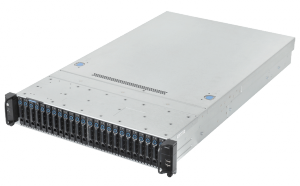

QuantaGrid D51B-2Uwiecej_button

Full-Featured Energy Efficient 2-Socket Server

Processor  (2) Intel® Xeon® processor E5-2600 v3 product family
 D51B-2U-25_FrontView01-740x460 Chipset  Intel® C610
Memory (24) 2133 MHz DDR4 RDIMM/ LRDIMM
Storage Option 1: (24) 2.5″ hot-plug
(2) optional rear 2.5″ hot-plug
(2) optional rear 2.5″ hot-plug PCIe SSD
Option 2: (12) 3.5″ hot-plug
(2) optional rear 2.5″ hot-plug
(2) optional rear 2.5″ hot-plug PCIe SSD
Network Controller Option 1: Intel® I350 dual-port 1 GbE
Dedicated 1 GbE management port
Option 2: Intel® X540 dual-port 10GbE BASE-T
Dedicated 1 GbE management port
Expansion Slot Option 1 (default): (1) PCIe Gen3 x8 SAS mezzanine slot
(2) PCIe Gen3 x8 LP MD-2
(1) PCIe Gen3 x8 FHHL
(1) PCIe Gen3 x16 FHHL
(1) PCIe Gen3 x8 OCP LAN mezzanine slot
Option 2: (1) PCIe Gen3 x16 LP MD-2
(2) PCIe Gen3 x8 FHHL
(1) PCIe Gen3 x16 FHHL
(1) PCIe Gen3 x8 OCP LAN mezzanine slot
 Intel_xeon Form Factor 2U rack mount

4U

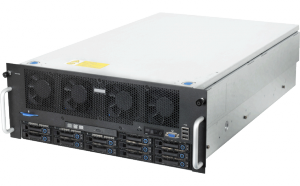

QuantaGrid Q71L-4Uwiecej_button

Powerful Enterprise Grade 4U
4-Socket Server with Unprecedented RAS and Scalability

Processor  (4) Intel® Xeon® processor E7-4800 v2 /E7-4800 v3 /E7-8800 v3 product family
 Server-QuantaGrid-Q71L-4U_FrontView01-740x460 Chipset  Intel® C602J
Memory E7-4800 v2 : (96) 1600 /1333 MHz DDR3 RDIMM
E7-4800 v3 /8800 v3 : (96) 1866 MHz DDR4 RDIMM
Storage (12) 2.5″ hot-plug (*up to (2) hot-plug PCIe SSD support)
Network Controller Option 1: Intel® I350 dual-port 1 GbE
Dedicated 1 GbE management port
Option 2: Intel® X540 dual-port 10GbE BASE-T
Dedicated 1 GbE management port
Expansion Slot (2) PCIe Gen3 x16 HH 3/4L ((1) has HS feature)
(8) PCIe Gen3 x8 HHHL ((3) has HS feature)
(1) PCIe Gen3 x8 dedicated storage mezzanine slot
(1) PCIe Gen3 x8 dedicated network mezzanine slot
 Intel_xeon Form Factor 4U rack mount
* (2) NVMe PCIe SSD supported onboard, (2) additional available with add-on PCIe card.

GPGPU

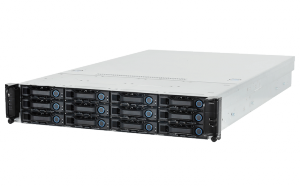

QuantaGrid D51BV-2Uwiecej_button

Energy Efficient 2-SocketGPU/ Intel® Xeon PhiTM Server

Processor  (2) Intel® Xeon® processor E5-2600 v3 product family
D51BV-2U_FrontView01-740x460 Chipset  Intel® C610
Memory (24) 2133 MHz DDR4 RDIMM/ LRDIMM
Storage Option 1: (10) 3.5″ hot-plug SATA 6Gb/s
Option 2: (12) 3.5″ hot-plug (require additional SAS/ RAID card)
Network Controller Option 1: Intel® I350 dual-port 1 GbE
Dedicated 1 GbE management port
Option 2: Intel® X540 dual-port 10GbE BASE-T
Dedicated 1 GbE management port
Expansion Slot (2) PCIe Gen3 x16 double-width FHFL
(2) PCIe Gen3 x8 LP MD-2
(1) PCIe Gen3 x8 OCP LAN mezzanine slot
 Intel_xeon INTEL_PHI Form Factor 2U rack mount

microserver

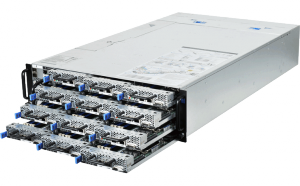

STRATOS S910-X31Ewiecej_button

9-Node 12-Node

High Density and Energy Efficient 3U Microserver

Processor  (2) Intel® Xeon® processor E5-2600 v3 product family
Server-STRATOS-S910-X31E-12Node_FrontView01-740x460 Chipset  Intel® C610
Memory (4) 1600/1333 MHz ECC UDIMM per node (4) 1600/1333 MHz ECC VLP UDIMM per node
Storage (2) 3.5″ per node, or (4) 2.5″ per node
Network Controller Intel® I350 dual port 1 GbE per nodeDedicated 10/100 Mbps management port on the systemBuilt-in switch with two 10G SFP+ ports for uplink on the system
Expansion Slot (1) PCIe Gen3 x8 mezzanine slot  None
 Intel_xeon Form Factor 3U rack mount, (9) nodes  3U rack mount, (12) nodes

multinode

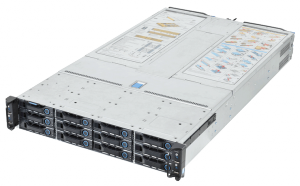

QuantaPlex T41S-2U (4-Node)wiecej_button

2U 4-Node Server Featuring Highest Compute Density

Processor  (2) Intel® Xeon® processor E5-2600 v3 product family per node
T41S-2U_FrontView01-740x460 Chipset  Intel® C610
Memory (16) 2133 MHz DDR4 RDIMM/ LRDIMM per node
Storage Option 1: (6) 2.5″ hot plug per node
Option 2: (3) 3.5″ hot plug per node
Network Controller Option 1: Intel® I350 dual-port 1 GbE per node
Dedicated 10/100 management port per node
Option 2: Intel® X540 dual-port 10GbE BASE-T per node
Dedicated 10/100 management port per node
Option 3: Intel® 82599ES dual-port 10G SFP+ per node Dedicated 10/100 management port per node
Expansion Slot (1) PCIe Gen3 x16 LP MD-2 per node
(1) PCIe Gen3 x8 mezzanine slot per node
 Intel_xeon Form Factor 2U rack mount, (4) nodes

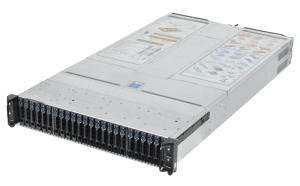

QuantaPlex T41SP-2U (4-Node)wiecej_button

2U 4-Node Server Featuring NVMe SSD

Processor (2) Intel® Xeon® processor E5-2600 v3 product family per node
T41S-2U-25_FrontView01-740x460 Chipset  Intel® C610
Memory (16) 2133 MHz DDR4 RDIMM/ LRDIMM per node
Storage (6) 2.5″ hot plug (2x NVMe SSD) per node
Network Controller Option 1: Intel® I350 dual-port 1 GbE per node
Dedicated 10/100 management port per node

Option 2: Intel® X540 dual-port 10GbE BASE-T per node
Dedicated 10/100 management port per node

Option 3: Intel® 82599ES dual-port 10G SFP+ per node
Dedicated 10/100 management port per node
Expansion Slot (1) PCIe Gen3 x16 LP MD-2 per node
(1) PCIe Gen3 x8 mezzanine slot per node
 Intel_xeon Form Factor 2U rack mount, (4) nodes

Broad Choice of Network/Storage Mezzanine Options

Prezentujemy szeroki wybór opcji w postaci zaprojektowanych przez QCT kart Mezzanin obsługujących sieci i karty SAS. Karty mezzanine sieciowe są dostępne w wersjach 1GbE / 10GbE Ethernet dla fail-over redundancji oraz 10GbE SFP wysokiej wydajności + / 40GbE QSFP + i sieci InfiniBand stosowany w celu zwiększenia przepustowości. W ofercie znajdują się również kontrolery storage 6GB /S  i 12GB/S SAS ( karty 3.0 mezzanine zaspokaja potrzeby zarówno oszczędnych aplikacji baz danych jak i krytycznych aplikacji wysokiej wydajności w klastrach HPC.

ON 40GbE Skyhawk-R
35S2BMA0010-740x460Revolutionary 40GbE Network Mezzanine Card

ON 40GbE CX3PRO
35S2BMA0020-1-740x460
Industry-leading Bandwidth with Ultra Low-Latency Network Mezzanine Card

ON 10GbE 57810
3MS2ZLB0030-1-740x460Full Hardware Offload Network Mezzanine Card

ON 10GbE 82599ES
3MS2ZLB0030-1-740x460Best Choice for Virtualization

ON 40GbE Skyhawk-R

3MS2BLB0030-740x460Revolutionary 40GbE Network Mezzanine Card

ON 10GbE CX3PRO
3MS2BLB0000-1-740x460Best-in-class QCT 10GbE SFP+ Mezzanine Card

ON 10GbE X540
37S2SLB0010-1-740x460
Upgrade Your Data Center with the Most Cost Effective 10GbE Copper Solution

ON 1GbE i350
37S2SLB0010-2-740x460
The Most Energy Efficient Network Mezzanine Card Solution

ON 10GbE CX3 SMBUS LACP
3JF03MA0060-1-740x460
Best-in-class QCT 10GbE SFP+ Mezzanine Card

ON 10GbE CX3 (LACP)
3JF03MA0060-2-740x460
Best-in-class QCT 10GbE SFP+ Mezzanine Card

ON 10GbE CX3 SMBUS

3JF03MA0060-1-740x460

Best-in-class QCT Networking, Optimized your server solution.

ON 10GbE CX3
3JF03MA0060-1-740x460

Best-in-class QCT 10GbE SFP+ Mezzanine Card

ON 10GbE 57811
3MS2ZLB0000-1-740x460
 Full Hardware Offload Network Mezzanine Card

ON 10GbE 82599EN
3JF03MA00C0-2-740x460

Best Choice for Virtualization

wiecej_button

Top
