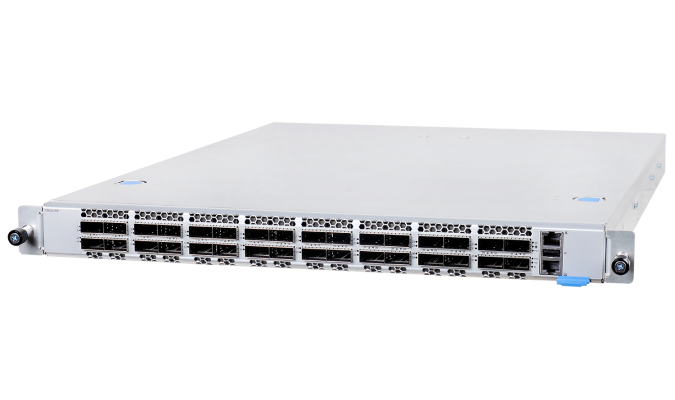

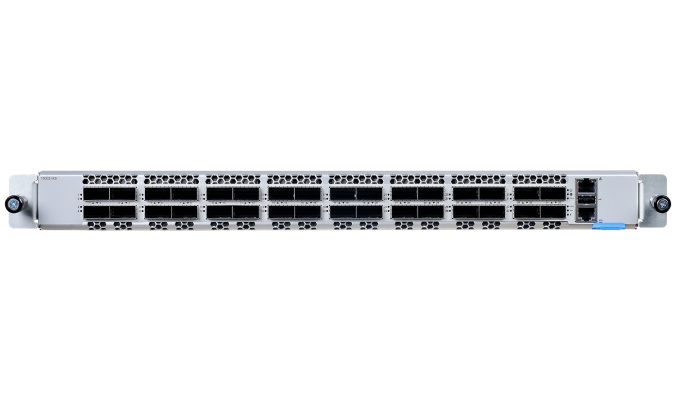

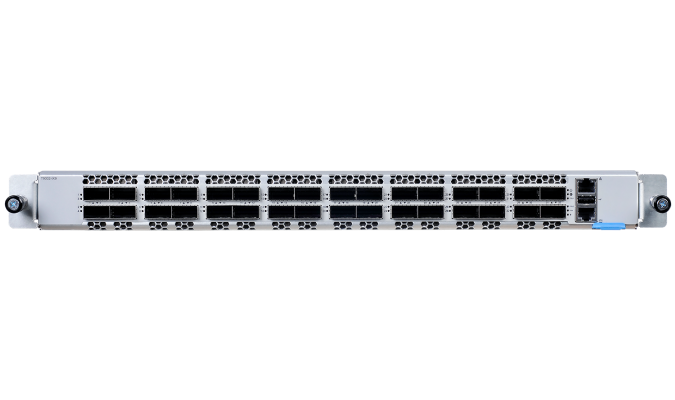

QuantaMesh BMS T9032-IX9 32 x 400GbE QSFP-DD x86

Physical Ports

• Port configuration: 32 QSFP-DD ports support for 400/200/100GbE
• Management Port: 1 RJ-45 out-of-band management port (10/100/1000M)
• Console Port: 1 RJ-45 console port
• USB: 1 USB 2.0 port

Performance

• Switching capacity: 25.6Tbps
• Maximum forwarding rate: 8B PPS
• Latency: 700 ns
• MAC: 8K to 64K

• ASIC: Broadcom Tomahawk3 BCM56980
• CPU: CPU: Intel Broadwell DE D-1527, TPM 2.0
• Memory: 32GB DDR4 SDRAM
• Storage: 128GB M.2
• Packet buffer: 64MB

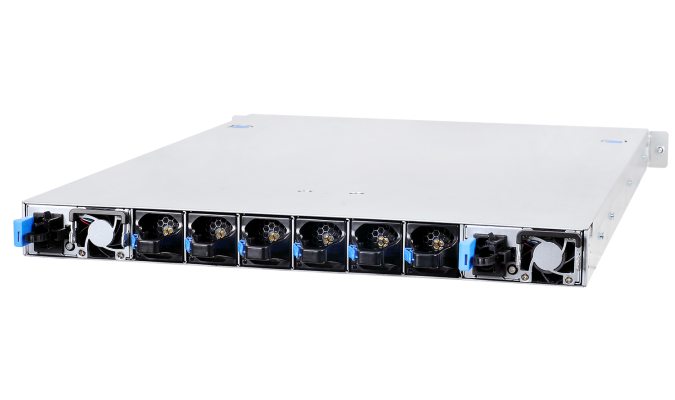

High Availability

• ‧Redundant power supply: 1+1
• ‧Hot-swappable fan tray: 5+1

• ‧Front to Back

• ‧Weight: 13.37kg(NET)

• ‧Operating temperature: 0~45°C
• ‧Operating humidity: 90% maximum relative humidity
• ‧Operating Altitude: 0 to 2952 ft, (0-900m)
• Electrical
• ‧Power requirement: 100~240V AC, 50/60Hz
• -40~-56V DC, 1600W*2 (1+1)
• Safety
• ‧UL, cUL, CB, CCC, VCCI
• EMC
• ‧CE, FCC, VCCI, CCC
• Supported Optics and Cables

‧Cables:

• - 100G Direct Attach Copper Cable (QSFP28 to QSFP28): 0.5m~5m
• - 400G Direct Attach Copper Cable (QSFP-DD to QSFP-DD): 0.5m~3m
• - 400G Active Copper Cable (QSFP-DD to QSFP-DD): 0.5m~3m
• - 100G Active Optical Cable (QSFP28, 850nm, MMF): 0.5m~10m
• - 400G Active Optical Cable (QSFP-DD, 850nm, MMF): 0.5m~3m
• - 400G Active Electrical Cable (QSFP-DD to QSFP-DD): 3m
• ‧Break-out Cable:
• - 100G Direct Attach Copper fan-out Cables (QSFP28 to 4 SFP28)
• - 400G Direct Attach Copper fan-out Cables (QSFP-DD+ to 4 QSFP28)
• - 400G Active Copper fan-out Cable (QSFP-DD+ to 4 QSFP28)
• - 100G Active Optical fan-out Cable (QSFP28 to 4 SFP28)
• - 400G Active Optical fan-out Cable (QSFP-DD+ to 4 QSFP28)
• ‧Optics:
• - 100G Optic (QSFP28, MPO, 850nm, MMF): 100GBASE-SR4
• - 100G Optic (QSFP28, LC, 1310nm, SMF): 100GBASE-LR4
• - 100G Optic (QSFP28, LC, 1310nm, SMF): 100GBASE-DR1
• - 100G Optic (QSFP28, LC, 1310nm, SMF): 100GBASE-FR1
• - 100G Optic (QSFP28, LC, 1271~1331nm, SMF): 100GBASE-CWDM4
• - 400G Optic (QSFP-DD, MPO, 850nm, MMF): 400GBASE-SR8
• - 400G Optic (QSFP-DD LC, 1273.54~1309.14nm, SMF): 400GBASE-LR8
• - 400G Optic (QSFP-DD, MPO, 1310nm, SMF): 400GBASE-DR4
• - 400G Optic (QSFP-DD, LC, 1271~1331nm, SMF): 400GBASE-FR4

Ordering Information

‧T9032-IX9 (1IX9UZZ0000) (Front to Back, AC, R16*2)
